ARCHITECTURE
Simple 3D model of a historical grain shed helps with documentation and preservation. Boulder, Colorado.
Documentation
Example application for architectural documentation.
Terrestrial photogrammetry can be used to record buildings in great detail. Measurements can be extracted from photographs for as-built drawings or export to CAD packages. Orthorectified views can also be made for scaled orthophoto representations.

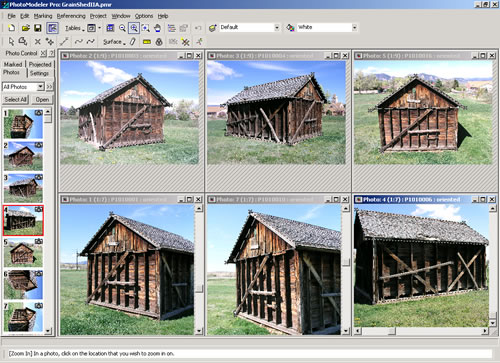

Reference points on the shed are mapped onto a series of hand-held photographs taken with a calibrated conventional camera.
Calculated camera positions.

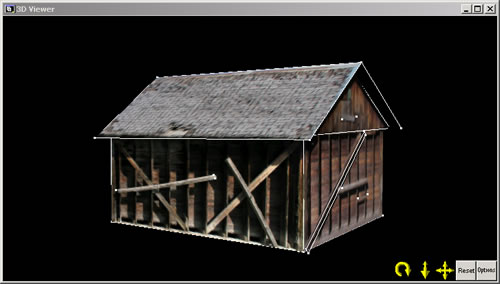

Three-dimensional model.

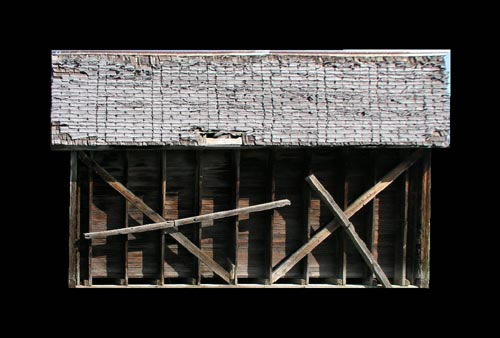

Orthorectified image.
